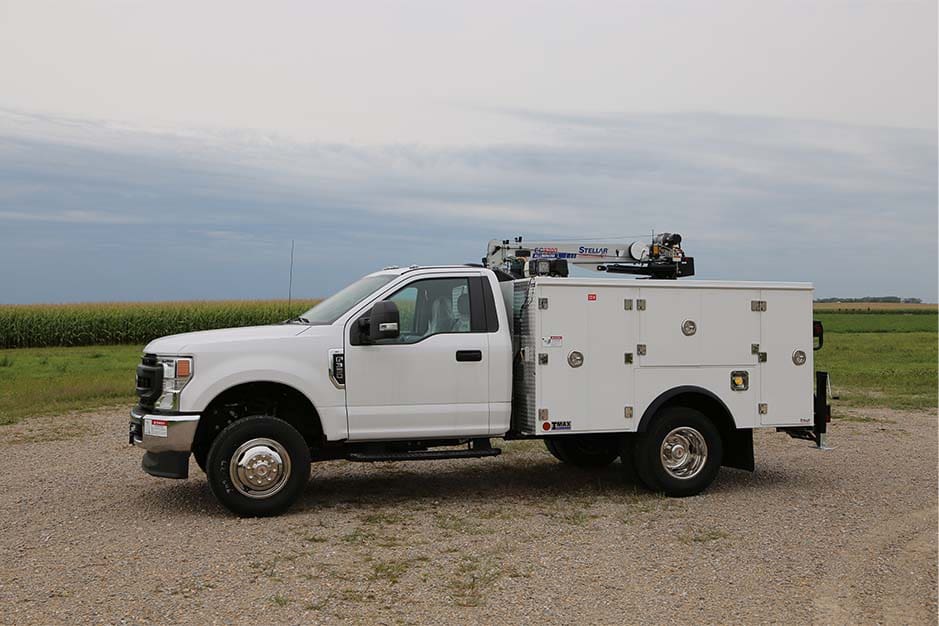

TMAX™ 16k Mechanic Truck
Productivity is at the heart of the TMAX 16K. Quality-built for long-term performance, the TMAX 16K aluminum mechanic truck is compatible with a range of electric and hydraulic cranes and can be customized with a variety of accessories to meet your needs.
Best of all, the TMAX 16K aluminum mechanic truck is loaded with design and engineering features that help you get the job done efficiently day in and day out.
8 available in Inventory
PrintAdditional Information
- Available in either 9′ or 11′ bodies.
- Proprietary crane mount ties into the exclusive aluminum extruded top and leaves aluminum crane compartment open for full use.
- Aluminum extruded top with drill-free mounting rails make it easy to add a wide range of mechanic service truck accessories.
- Mounting rails integrated within compartments allow for fully customizable configurations.
- Aluminum sidepack and doors reduce weight and corrosion, allowing for more payload and longer life.
- Rear bulkhead fittings for electric and/or hydraulic lines for crane.
- Ease of wiring access with added pre-drilled holes between compartments for seamless wiring installation.
- Bodies feature either a bolt-on 14″ steel step bumper or a bolt-on 21″ steel workbench bumper with an integrated full-width long bar storage compartment and vise mounts.
- Roller-type boom support helps center the crane boom when stowing.
- Stainless-steel billet-style hinges have hidden fasteners and a rugged 5/16″ stainless-steel rod for years of heavy use.
- Multi-function stop/turn light provides an additional backup light and can be synced to a strobe light’s flash pattern when used together.
- Rotating master-lock system for security.
- Exterior mounted light box provides easy mounting for work lights and other accessories while minimizing entry points into the body.
- 3-point compression latches keep weather-stripping tight while allowing easy access.
- Easily add a wide range of mechanic service truck accessories, like bale handle drawer sets and bolt bins for better organization.
- Double-panel 1/8″ aluminum tailgate with hinged arm brackets provides a stout working surface.
- 250-lb capacity, adjustable divider shelves made of spangled galvanized steel.
- Hydraulic reservoir design features a top-mounted filter for easier maintenance.
- Complete undercoating, with minimum of 6.5 mils of petroleum base material, provides extra protection from corrosion and road debris.
- Simplified back-end design minimizes welded holes on the truck body for improved durability.
- Mudflaps positioned to wire guards to avoid interference with exhaust systems.
Models:
- TMAX 16K-9
- TMAX 16K-11
Specifications
| Applicable Chassis: | 14,000 - 22,900 GVWR |
| Clear Cab to Axle: | 60" (152 cm) or 84" (213 cm) |
| Body Length: | 109" (277 cm) or 133" (338 cm) |
| Body Height: | • 44" (112 cm) • 52" (132 cm) with or without an 8" (20 cm) drop well for 60" bottle storage |
| Compartment Depth: | 22" (55.88 cm) |
| Floor Width: | 50" (127 cm) |
| Body Width: | 94" (239 cm) |
| Net Weight: | Aluminum: 9' NRSD 44": 1,724 – 1,936 lbs (782 – 878 kg) 9' ARSD 52": 1,803 – 2,024 lbs (818 – 918 kg) 11' NRSD 44": 1,963 – 2,176 lbs (890 – 987 kg) 11' ARSD 52": 2,062 – 2,284 lbs (935 – 1,036 kg) |
Compatible Cranes
| Crane Rating | Max. Reach | Max. Capacity | Control Systems | |
|---|---|---|---|---|
| Electric Cranes | ||||

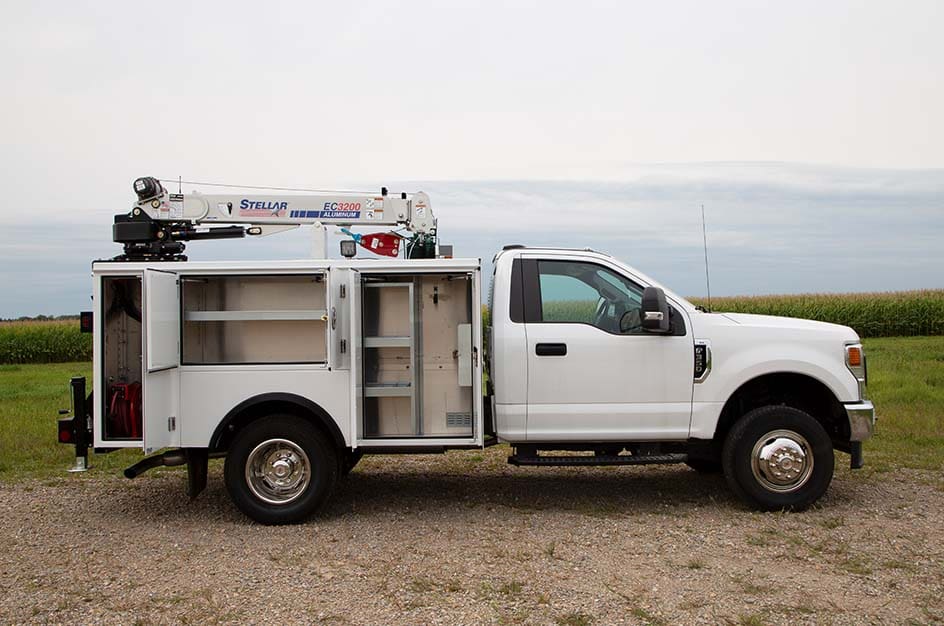

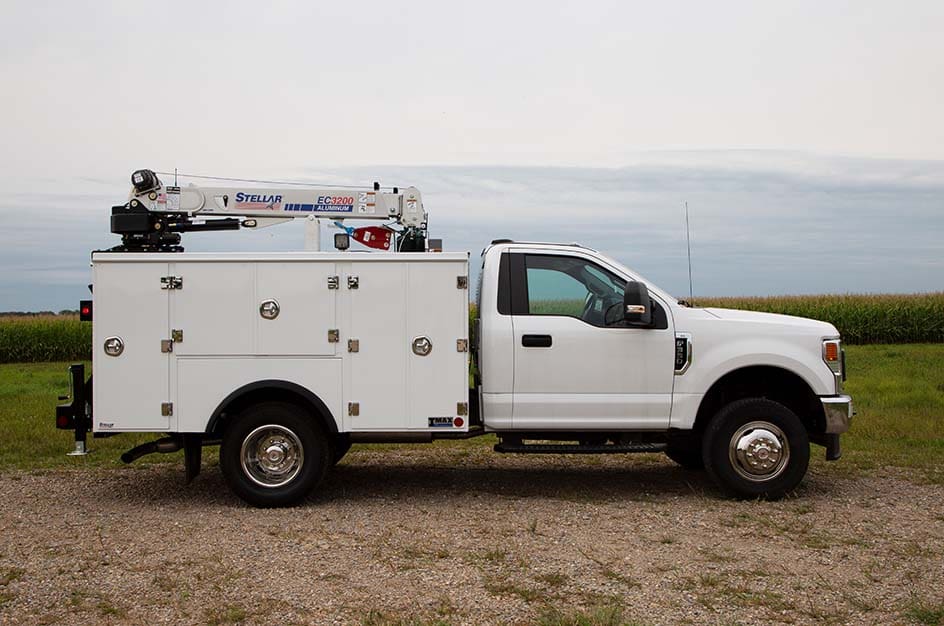

| EC3200 | 11,500 ft-lb | 15' (4.57 m) | 3,200 lbs (1451 kg) | Yes |
| EC4000-16 | 16,000 ft-lb | 16' (4.88 m) | 4,000 lbs (1,814 kg) | Yes |
| EC4000-20 | 16,000 ft-lb | 20' (6.10 m) | 4,000 lbs (1,814 kg) | Yes |
| Electric-Hydraulic Cranes | ||||
| 3315 | 11,500 ft-lb | 15' (4.57 m) | 3,200 lbs (1,451 kg) | CDT™ |
| 4421 | 16,000 ft-lb | 21' (6.40 m) | 4,000 lbs (1,810 kg) | CDT™ |
